PowerPoint Slide 1

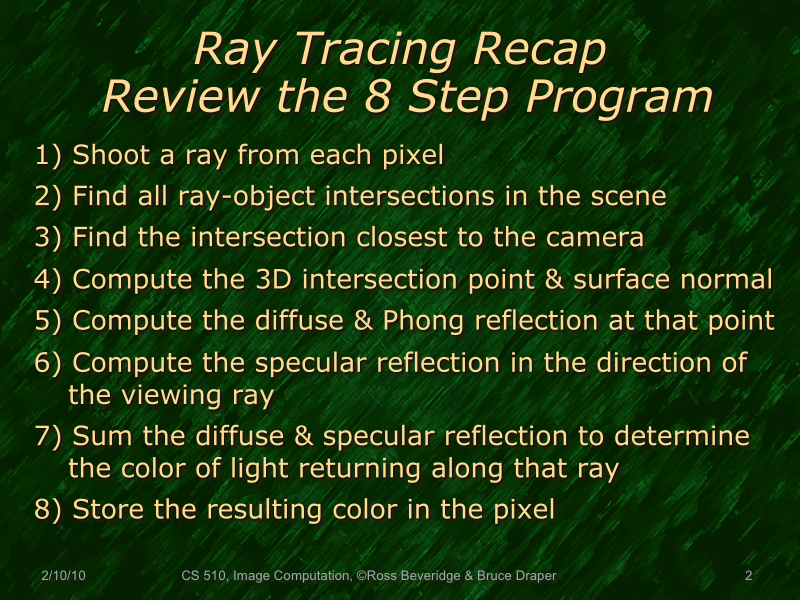

PowerPoint Slide 2
Decorative top border for comment
2/5/10 - We had a discussion in class regarding how to model the camera in the ray tracer. Suggested method:

VRP = [x y z] and VRP = [x' y' z'] (Ross suggests setting VRP = [0 0 -1]. VRP.VPN = 1

To calculate field of view, if focal length = 10 and iw =2, fov = 2 arctan 1/10

Decorative bottom border for comment
PowerPoint Slide 3

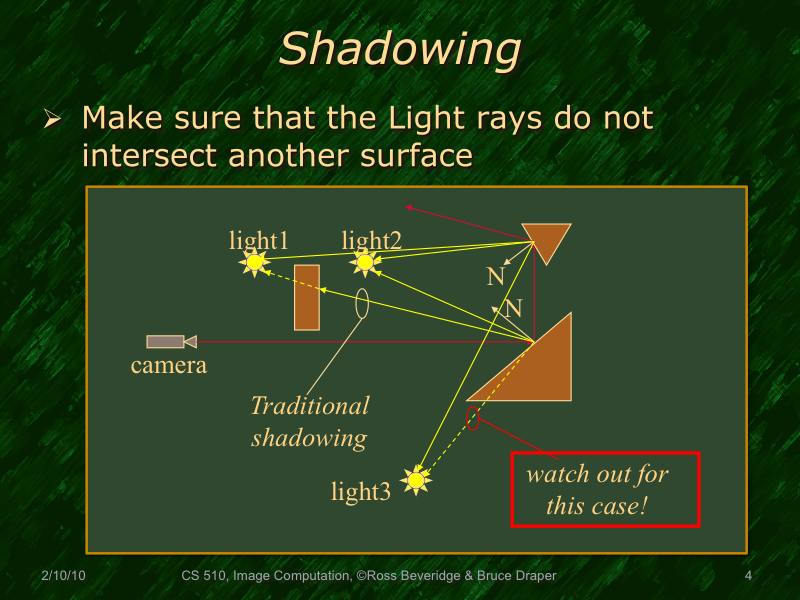

PowerPoint Slide 4
Decorative top border for comment
Decorative bottom border for comment
PowerPoint Slide 5
Decorative top border for comment

Bigger aperture lets in more light. It is also harder to focus the image. Smaller apertures lead to more focused images. This affects the depth of view.

Decorative bottom border for comment

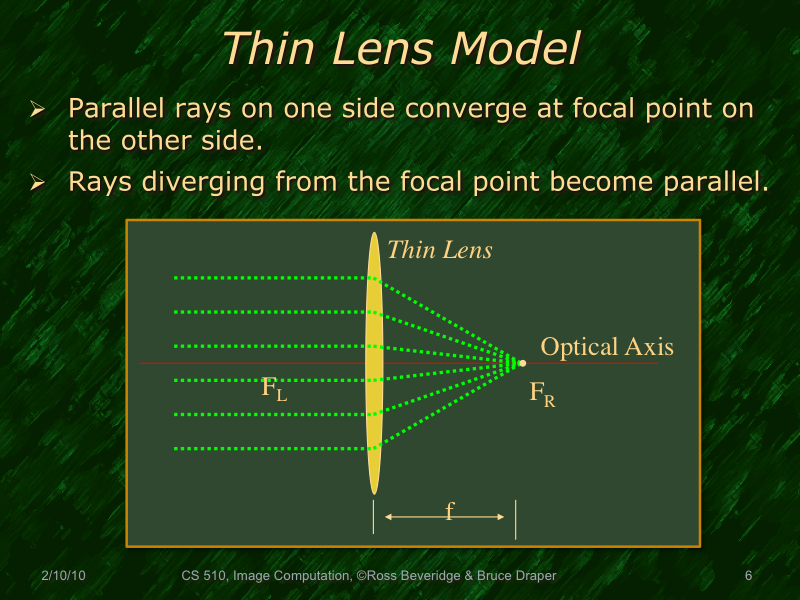

PowerPoint Slide 6
Decorative top border for comment

In a thick lens model, the light would bend upon entering the lens and then bend again upon leaving. In the case of a thin lens model, there is a plane that vertically cuts the lens in half and light bends at that part of the lens only.

Decorative bottom border for comment

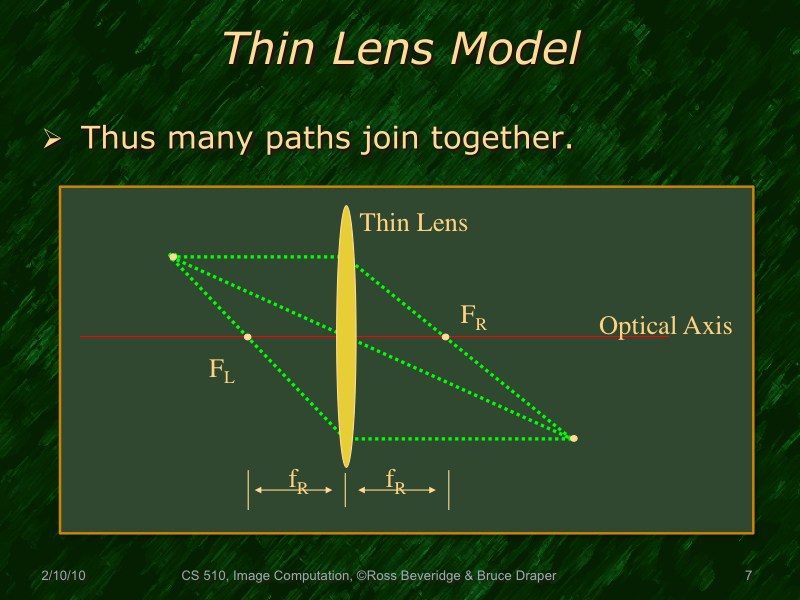

PowerPoint Slide 7
Decorative top border for comment
Decorative bottom border for comment

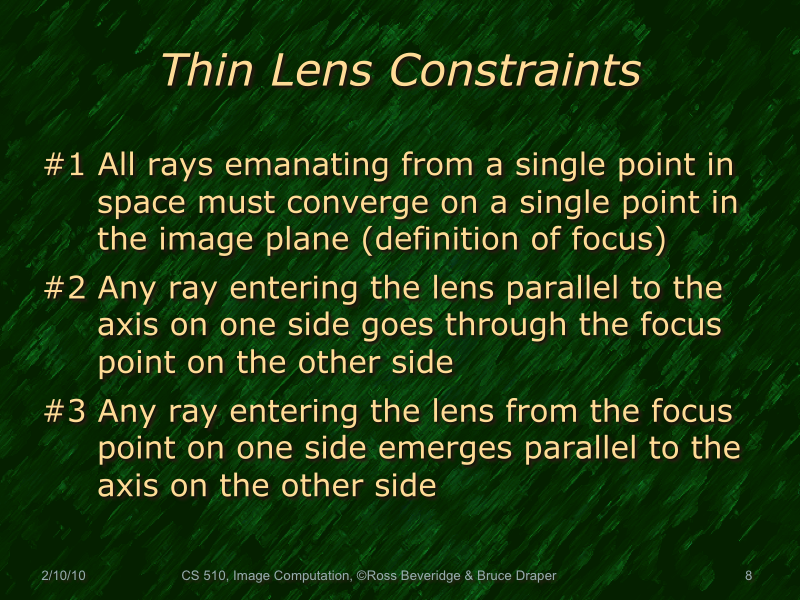

PowerPoint Slide 8

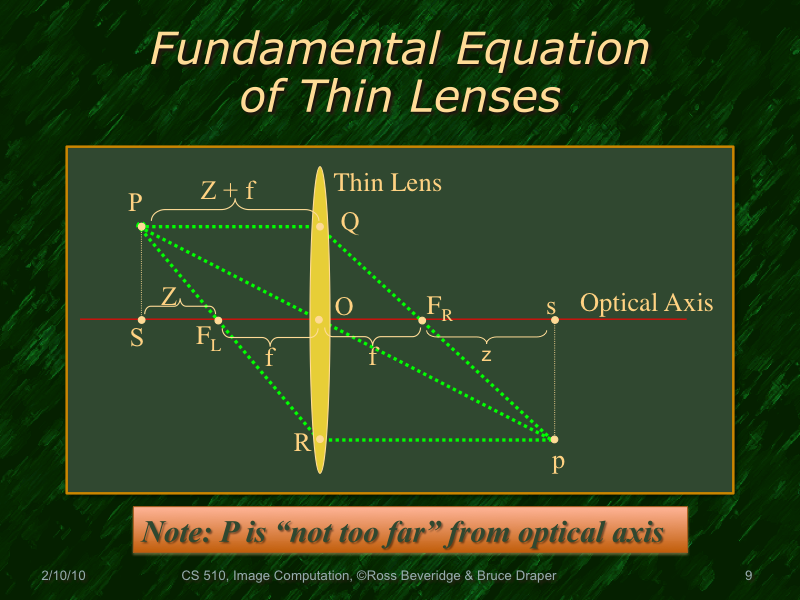

PowerPoint Slide 9



PowerPoint Slide 10

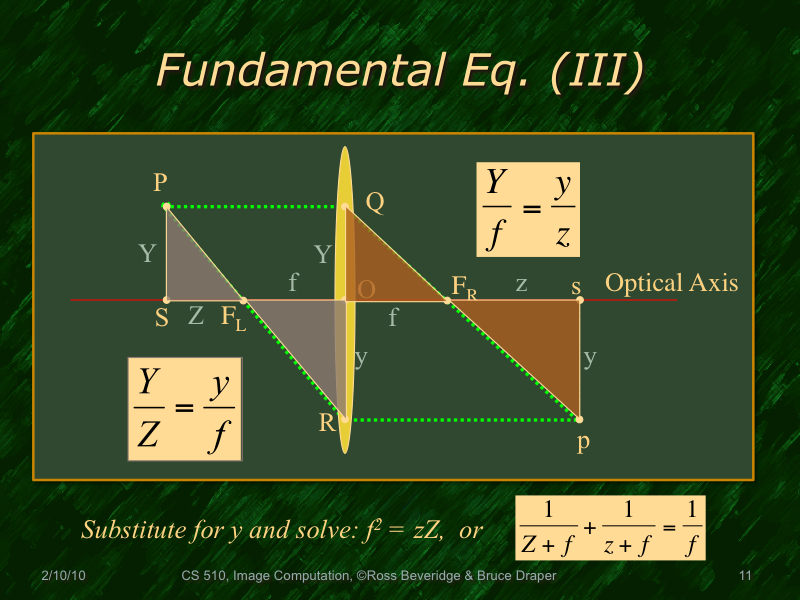

PowerPoint Slide 11
Decorative top border for comment

Needs to be cleaned up.

Y/Z = y/f , Y/f = y/z

y = Yf/Z

y = Yz/f = Yf/Z

z/f = f/Z

...

z=f^2/Z

zZ = f^2

The boxed equation is called the 'lensmakers equation' and is discussed here: http://en.wikipedia.org/wiki/Lens_(optics)

Decorative bottom border for comment

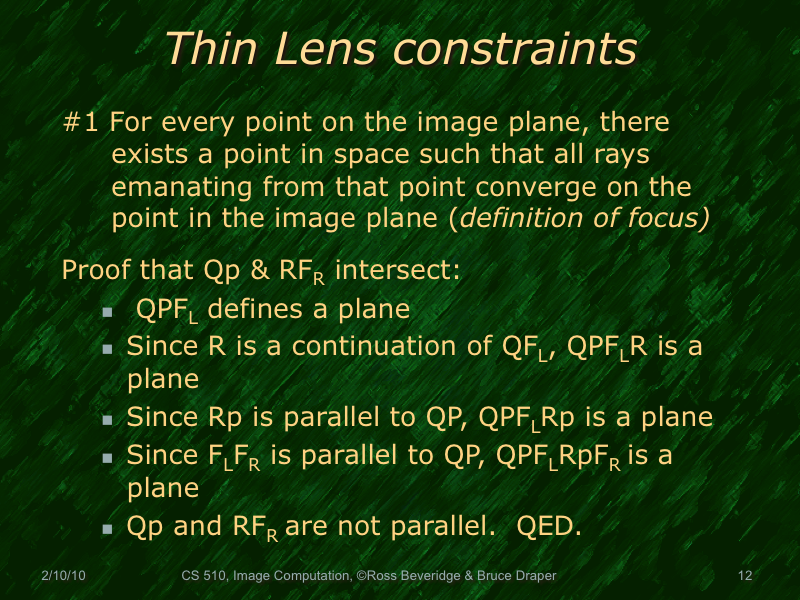

PowerPoint Slide 12

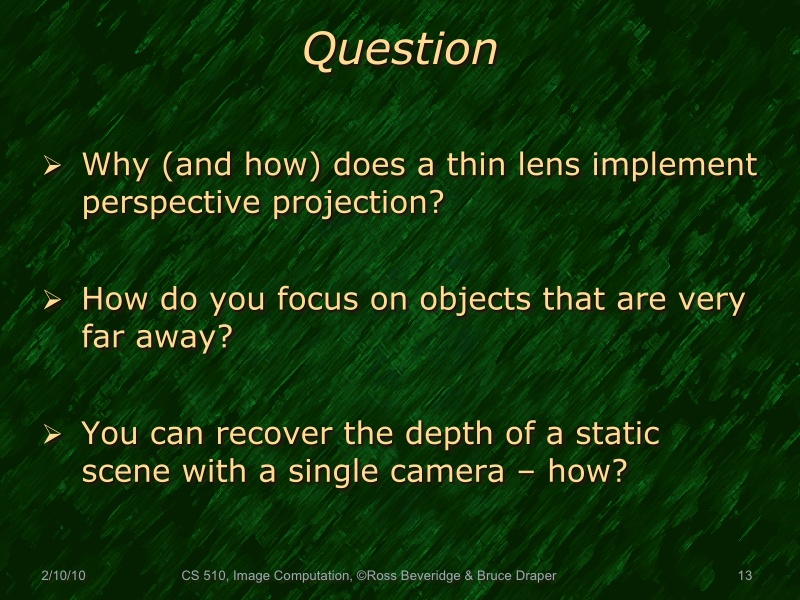

PowerPoint Slide 13
Decorative top border for comment

We ended here on Monday February 8.

Decorative bottom border for comment
PowerPoint Slide 14

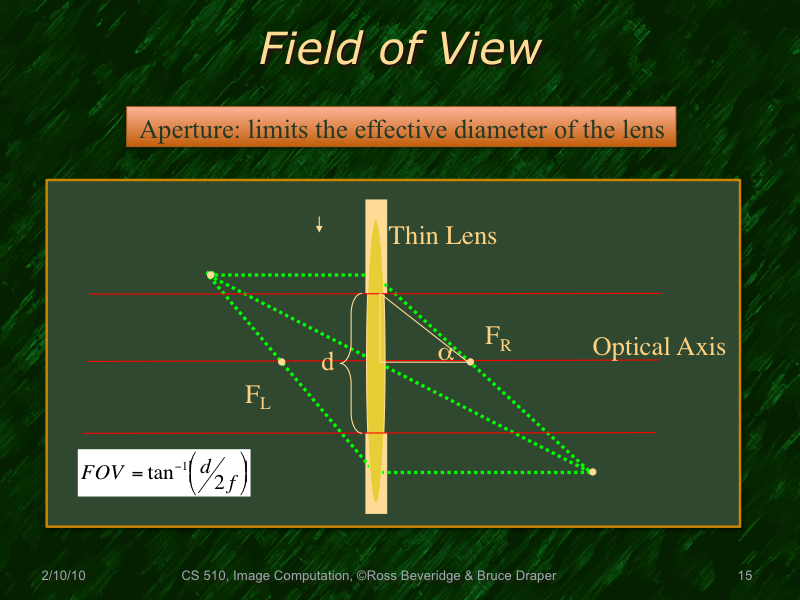

PowerPoint Slide 15
Decorative top border for comment
d represents size of aperture
Decorative bottom border for comment

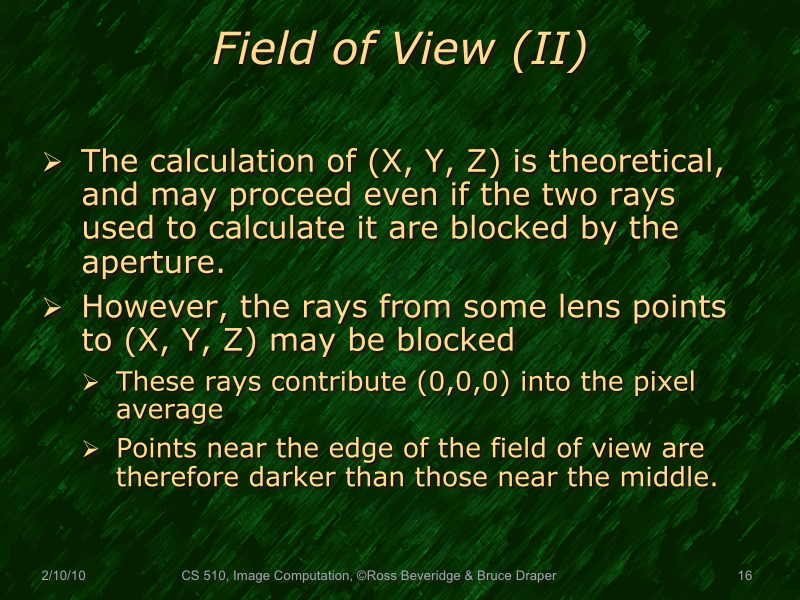

PowerPoint Slide 16

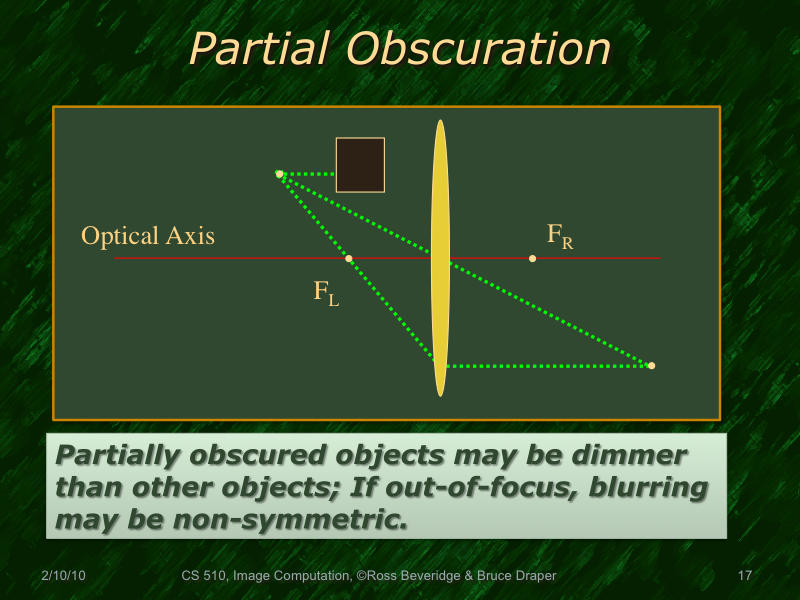

PowerPoint Slide 17

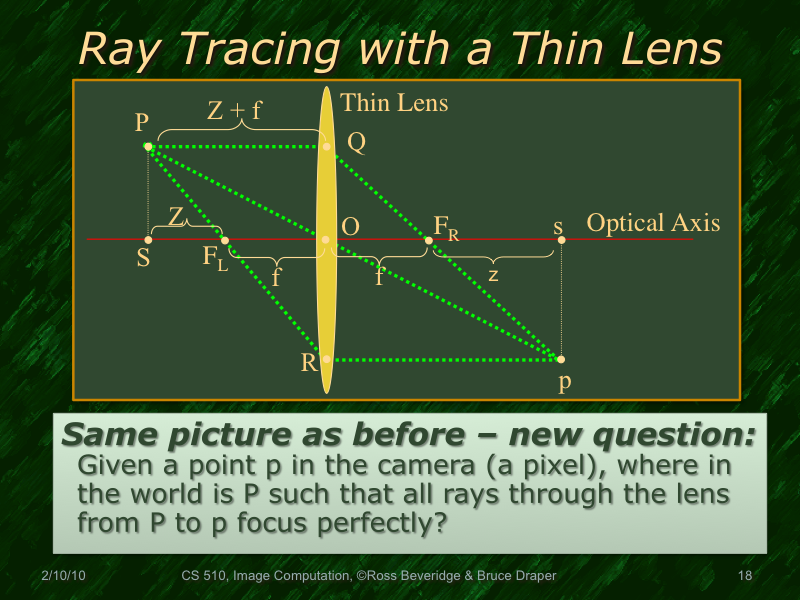

PowerPoint Slide 18
Decorative top border for comment
P is the intersection of 2 rays shot through the thin lens from p. (see next slide)
Decorative bottom border for comment

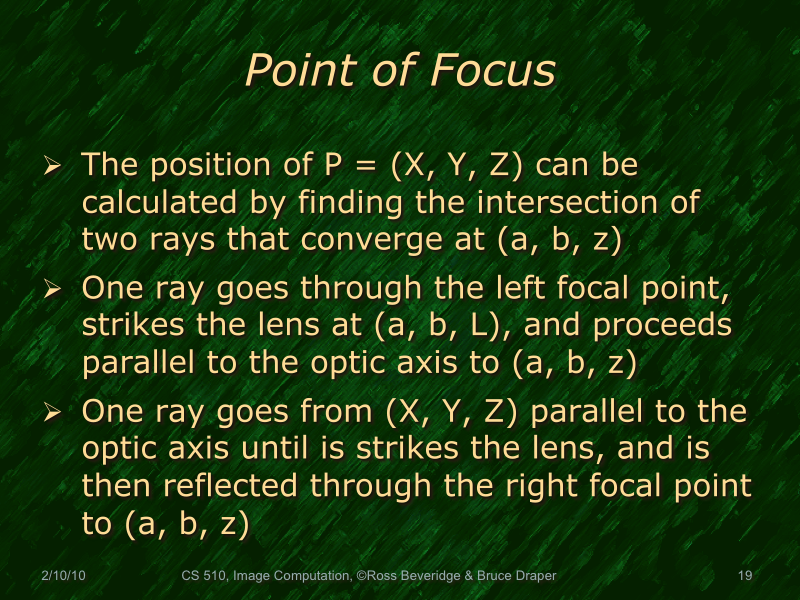

PowerPoint Slide 19

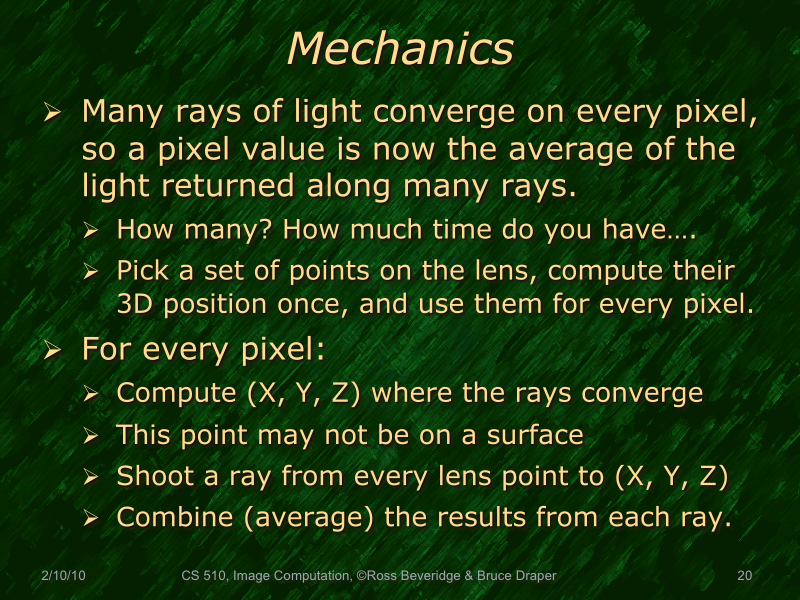

PowerPoint Slide 20



PowerPoint Slide 21

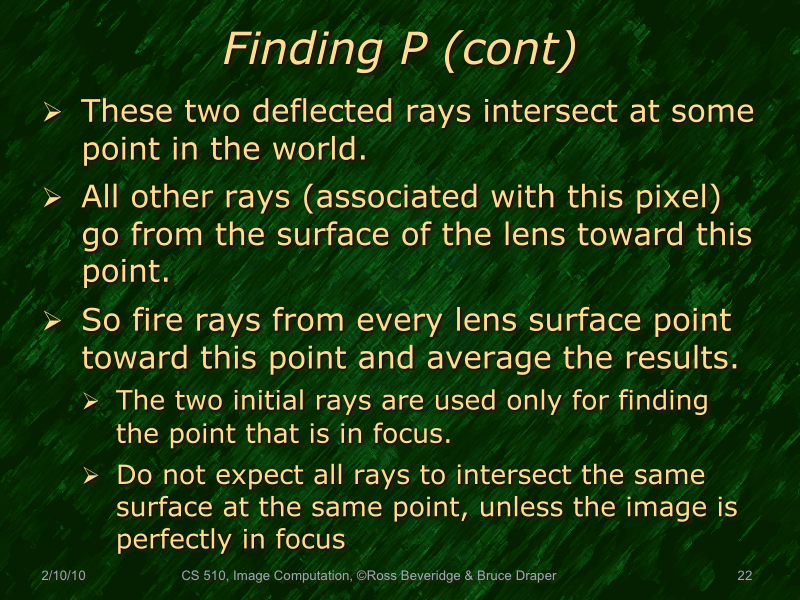

PowerPoint Slide 22

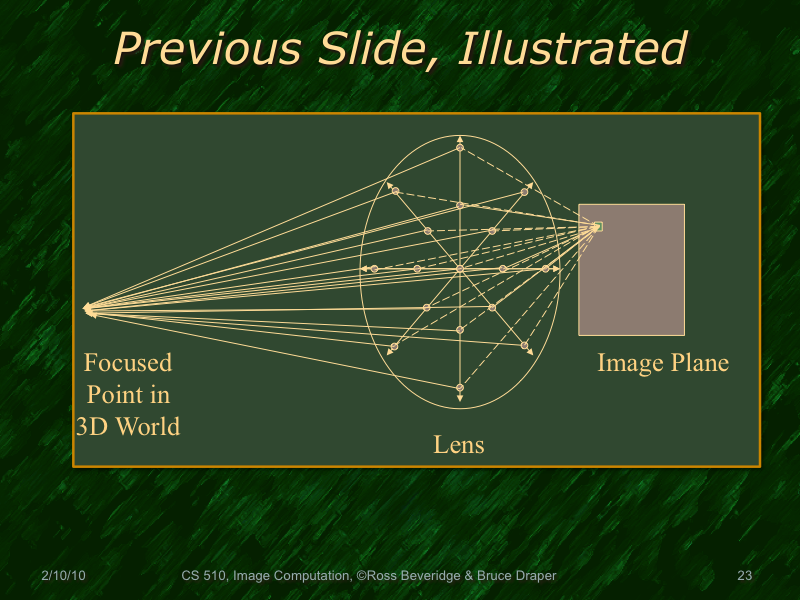

PowerPoint Slide 23

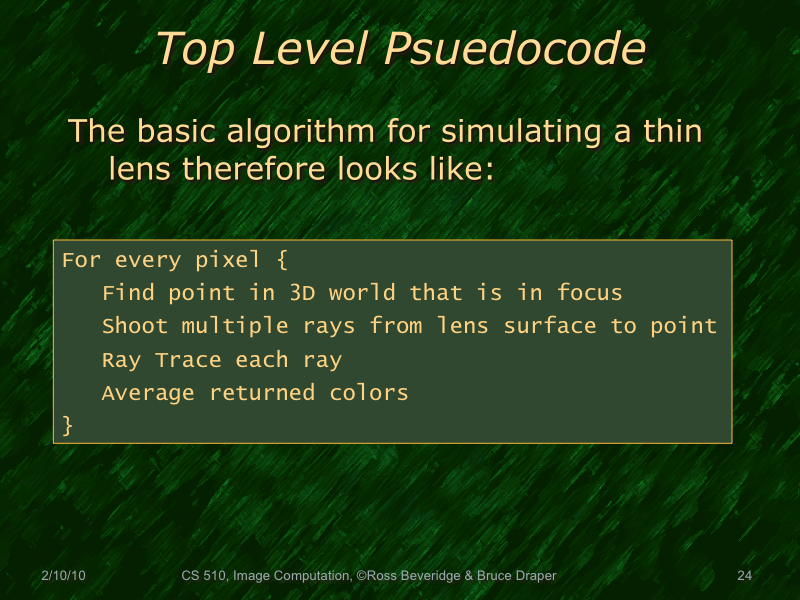

PowerPoint Slide 24

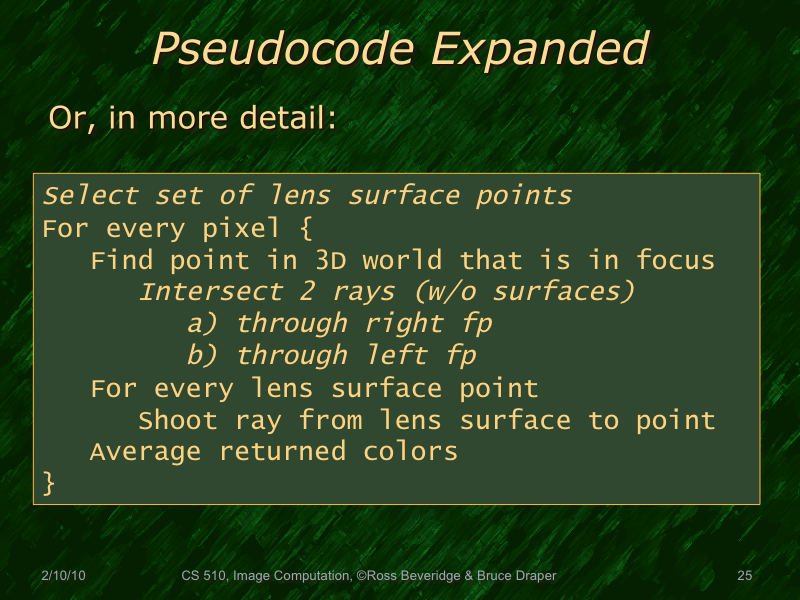

PowerPoint Slide 25
